Brush Creator: Paint¶

Mixing¶

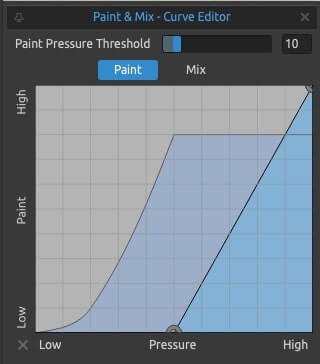

Paint Mode Curve Editor: Paint & Mix - By default, this mode paints with certain pressure. If you use less pressure, from a certain point you start to mix the colors together. Adjust the pressure curve for the Paint & Mix mode of the brush using the curve editor:

Pressure curve for Paint.

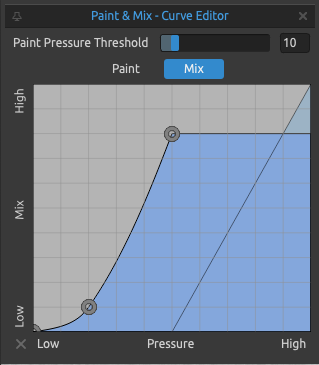

Pressure curve for Mix.

Below are three examples of different settings of the Pressure curve for the Mix mode:

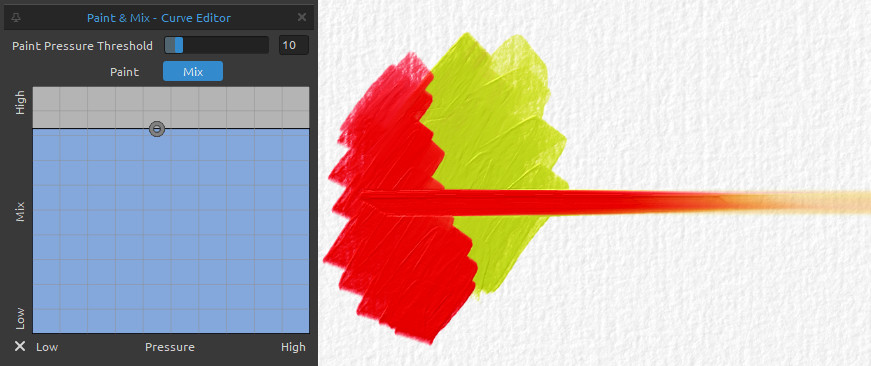

1. High Mixing - The curve below shows the example of high mixing - it takes longer for the first color (red) to get mixed with the new color (green). The first color prevails on the brush for a longer period of time with these curve settings:

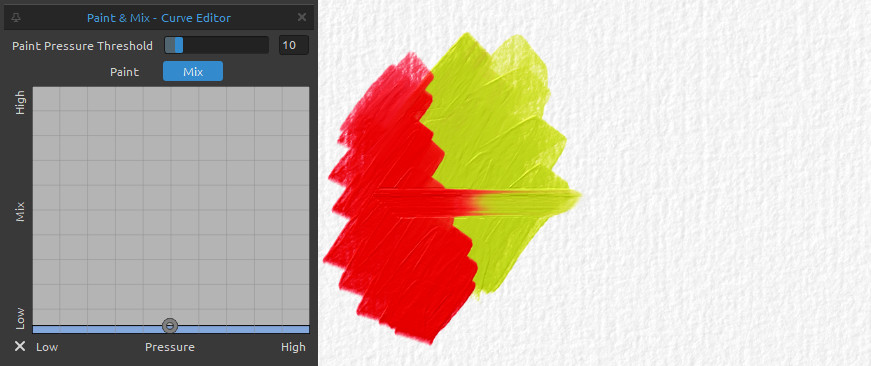

2. Low Mixing - The curve below shows the example of low mixing - it takes a very short period of time for the first color (red) to get mixed with the new color (green). The first color mixes with the new color almost immediately with these curve settings:

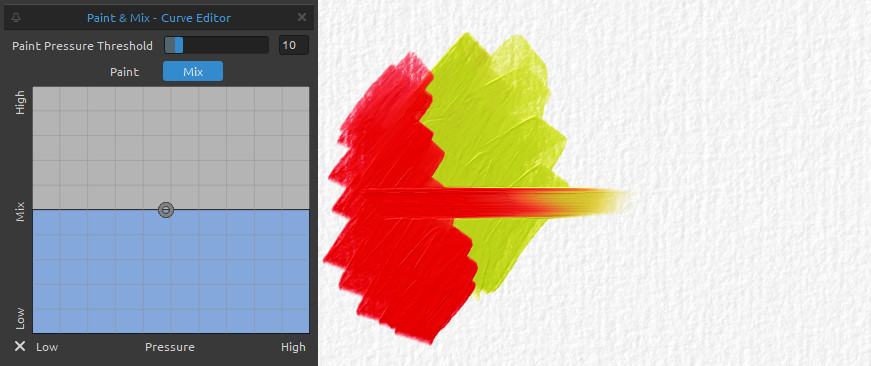

3. Medium Mixing - The curve below shows the example of a setting between high and low mixing:

Paint Pressure Threshold - Represents the % at which using less pressure activates the Mix mode of Paint & Mix.

The value on the slider defines by how many percent you need to lower your pen pressure in order to start mixing. By default, if you never ease your pen pressure during a stroke you will not mix anything, lowering it by 10% of the maximum pressure reached during the current stroke is required. After that, the Mix curve will control the paint mixing.

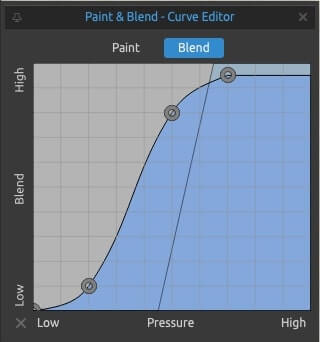

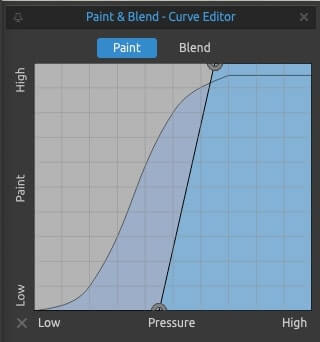

Paint Mode Curve Editor: Paint & Blend - By default, this mode paints with certain pressure. If you use less pressure, from a certain point you start to blend the colors together. Adjust the pressure curve for the Paint & Blend mode of the brush using the curve editor:

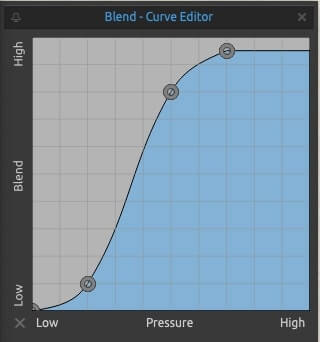

Paint Mode Curve Editor: Blend - Adjust the pressure curve for the Blend mode of the brush using the curve editor:

Below are three examples of different settings of the Pressure curve for the Blend mode:

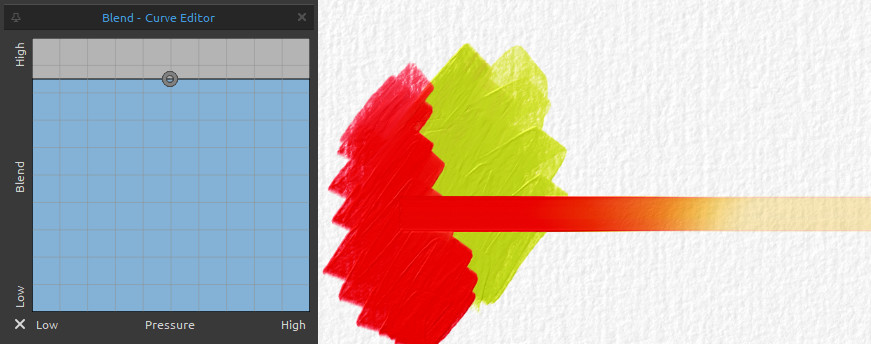

High Blending - The curve below shows the example of high blending - it takes longer for the first color (red) to blend with the new color (green). The first color prevails on the brush for a longer period of time with these curve settings:

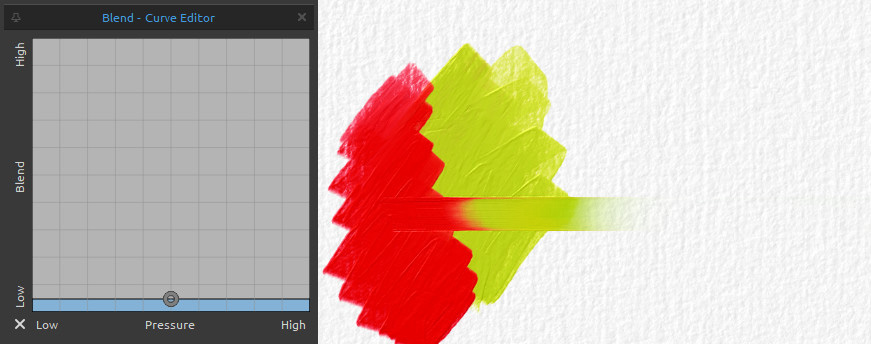

Low Blending - The curve below shows the example of low blending - it takes a very short period of time for the first color (red) to blend with the new color (green). The first color blends with the new color almost immediately with these curve settings:

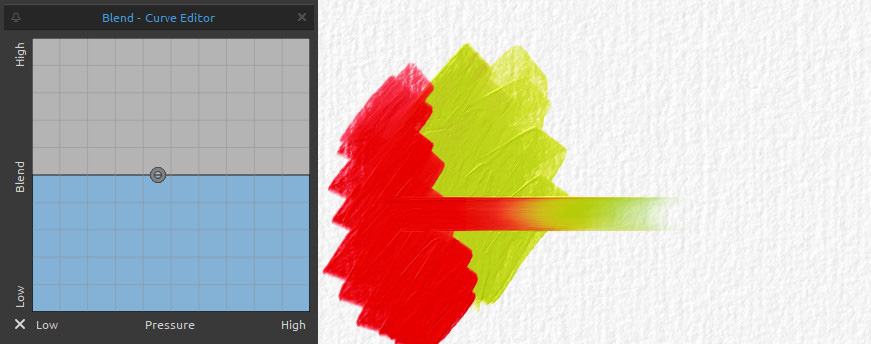

Medium Blending - The curve below shows the example of a setting between high and low blending:

Note

You can set the default pressure curves settings for Paint, Mix and Blend by going to Preferences > Tools. This setting will apply to all brushes globally.

Rendering¶

Normal - Every brushmark of the stroke builds up the layers of pigment on the canvas until the full opacity is reached.

Glaze - Turn the glazing on to build up the transparent layers of pigment on the canvas, limited by the Opacity slider in the Properties panel. Glazed strokes are used on top of one another to build up depth and modify colors in a painting:

Note

For the "Oils and Acrylics" tool only Normal mode is available.

Paint Blending determines the color blend mode used to lay down the paint on the layer. Usually, brushes use 'Default' mode (which for most of the tools is a 'Normal' mode), but you can use e.g. Linear Dodge to lighten the painting or Saturation to saturate/desaturate the painting with the brush

Original image on the left and image with Paint blending using Dodge mode on the right.

Note

These blend modes are not available for the "Oils and Acrylic" tool.

Default Color - Enable this option to save a color for the selected brush preset. Click on the color swatch to open the system color palette where you can set up the precise color of the brush.

Oils & Acrylics Impasto¶

Max. Impasto Height - Set the maximum loading of color on the oil and acrylic brushes (0-200).

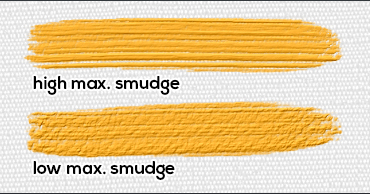

Max. Impasto Smudge - Set the maximum smudge for the oil and acrylic brushes (0-200) and influences their impasto effect:

Thick Impasto - Achieve a more pronounced impasto with your brushes. The option is by default enabled for Rebelle 7 brush presets.

Canvas Texture Influence¶

Paper Texture Strength - Set how much the paper texture should influence the brush stroke (0-100).

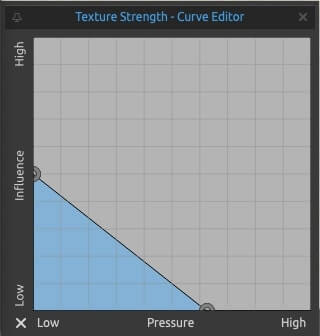

Texture Strength Curve Editor - Adjust the pressure curve for the Texture Strength influence using the curve editor:

Paper Texture Contrast - Set how the texture contrast should be visible on the brush grain based on the pressure of the pen (0-100):

Paper Texture Scratch - Open the settings to influence how the brush strokes should scratch over the paper texture:

Auto - The default setting for each paper texture is used.
Light Texture - The brush strokes scratch over the light parts of the paper texture.
Dark Texture - The brush strokes scratch over the dark parts of the paper texture.

Legacy Paper Mode - Compatibility mode for Rebelle 6 brushes. It disables Height maps by default. It also uses Paper Texture Scratch mode from Rebelle 6 = all brushes set to 'Auto' use the dark parts of the paper, except for CA01 and CA06 papers which will use the light parts of the paper texture. Legacy Paper mode will automatically activate for Rebelle 6 brushes imported to Rebelle 7.

Video tutorial

Learn more about Rebelle's Paint settings in this video: Brush Creator: Paint

Cursor¶

Cursor Mode - Define the appearance of the cursor for the selected brush preset. You can choose from four different cursor modes:

Circle - Sets up a circle cursor;
Rectangle - Sets up a rectangle cursor;
Shape - Sets up a cursor in the shape of the brush preset;
Auto - Sets up the best suitable cursor based on the shape or shapes in the brush preset.

Threshold - Determines which parts of the shape's texture are taken into account for creating the cursor's shape based on opacity (1-10). Low threshold values mean that even parts with low opacity are going to shape the cursor. A high threshold determines only parts with higher opacity are taken into the shape of the cursor.
