Working with Rulers

Straight line with 'Shift' key

The easiest way to paint a straight line in Rebelle is to press the Shift key while using any drawing tool. Pressing Shift sets one end of the ruler. Manually set the other end, press the mouse button or a pen and naturally draw the line between these two points.

The tool snaps to the vertical and horizontal position when in the proximity of the right angle - to disable this, hold the Shift + Ctrl keys.

To create lines, circles, ellipses or perspectives with more advanced options, activate the Ruler tool from the Edit menu or by hitting Shift + R.

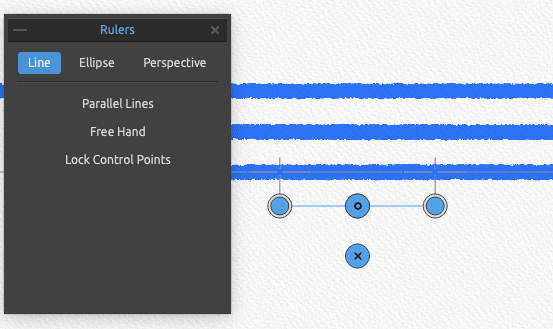

Line tool

Create perfect lines with the Rulers' Line tool. The tool consists of four control points.

Drag the outside control points to resize and rotate.

Reposition the ruler on the canvas by clicking and dragging the middle control point without changing the angle. Click the Close button to deactivate the tool.

Parallel Lines - Activate this option to be able to draw parallel lines without the need to move the tool.

Free Hand - Activate freehand to give the straight lines a hand-drawn appeal.

Lock Control Points - Lock the ruler's control points to prevent it from accidentally moving the points.

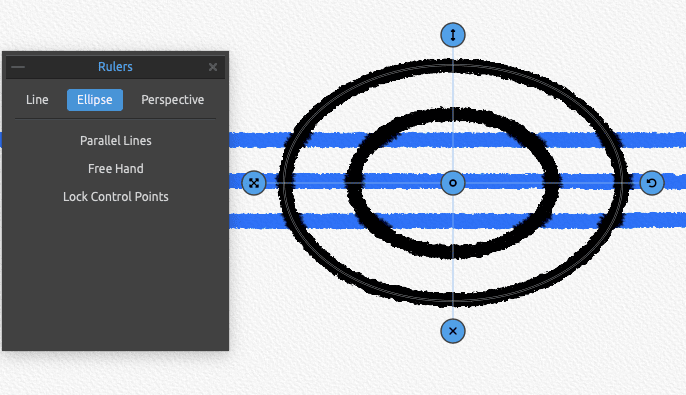

Ellipse tool

Create perfect circles and ellipses with the Rulers' Ellipse tool. The tool consists of five control points.

Reposition the ruler on the canvas by clicking and dragging the middle control point without changing the angle.

Click the Rotate button to rotate the ruler around the center.

Click the Resize vertical button to resize the ruler along the vertical axis.

Click the Transform button to resize the ruler up or down.

Click the Close button to deactivate the tool.

Parallel Lines - Activate this option to be able to draw parallel lines without the need to move the tool.

Free Hand - Activate freehand to give the lines a hand-drawn appeal.

Lock Control Points - Lock the ruler's control points to prevent it from accidentally moving the points.

Reset - Reset the ellipse to a circle. This action will also reset the rotation of the tool.

Perspective tool

Choose between one, two or three points perspective.

Free Hand - Activate freehand to give the straight lines a hand-drawn appeal.

Lock Control Points - Lock the perspective tool's control points to prevent it from accidentally moving the points.

Lock Horizontally - Lock the perspective horizontally.

Video tutorial

Learn more about Rebelle's Ruler and Perspective in this video: Ruler and Perspective Tool.
